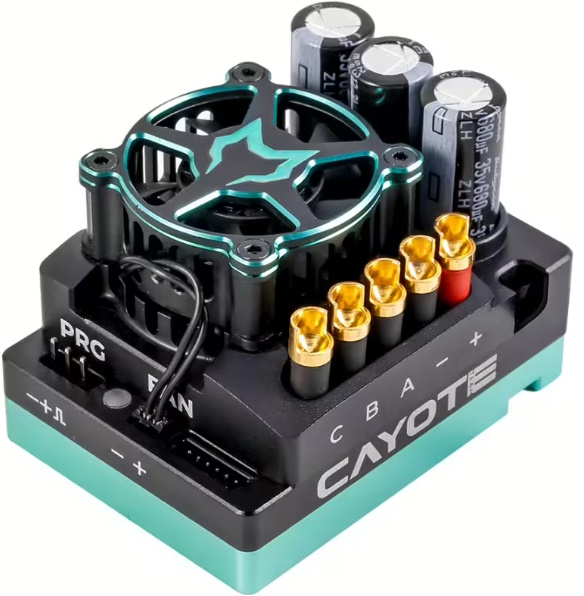

CAYOTE CREST X - a new star in the sky of 1:10 competition controllers
The Cayote Crest X speed controller (ESC) delivers high performance and reliable power transfer to keep your RC vehicles running smoothly and efficiently.
This controller has an advanced cooling system and a variety of features that combine smart technology with user-friendly operation.
Combine it with a Cayote motor and battery for the best performance.
The Cayote CREST X controller can be used in both Stock and Modified classes.
The Cayote CREST X can be perfectly adjusted for all 1:10 applications thanks to the wide range of setting options.
Product Highlights
- Fully adjustable boost & turbo timing functions
- Increased power output and optimized engine efficiency
- Offline data logging
- Track ESC performance so you can make informed decisions.
- Over 33 adjustable parameters
- Supports various power and driving modes.
Features
- Scale 1/10
- Mode Sensor/Sensorless
- Continuous current 160A
- Peak current 1100A
- Battery 2S Lipo
- BEC output voltage 6.0 / 7.4V
- BEC output current 8A constant, 12A peak
- Firmware upgrade Supported
- Data recording Extreme value, real-time data
- Dimensions 37.9 x 31.4 x 30mm
- Weight 55g
- Motor limits 1/10th TC≥4.5Tï¼›1/10th Off Road≥5.5T
Wiring and cooling
- Output wires: Black-13AWG-180MM*
- Input wires: Red-13AWG-180MM*
- Schwarz-13AWG-180MM*1
- Fan: 25x25x10mm, 5-8.4V BEC
ESC programming via
- Xlink program box compatible
- BTune connect (optional)
- APP control (optional)
