Sanwa PGS-HR Servo (for 1/12 cars)

Descrizione

Fh5u: sxr(sanwa xtreme response) mode-compatible
ssl-compatible programmable servo # compatible with code 10 (m12s, exzes zz, mt-44) not compatible with code 5 (m12, exzes z, mt-4s, mt-4, mt-s)
pgs setting gear-compatible
Specialized for 1/12 models
Lipo (1&2cell) battery support
Digital servo
Coreless motor
Full metal gear

Specifications:
Speed:
@3.7V: 0.10sec/60°
@6.0V: 0.16sec/60°

Torque:
@3.7V: 3.8 kg・cm (3.7 V)
@6.0V: 5.8 kg・cm (6.0 V)
Dimensions: 27.0 x 21.1 x 30.5 mm
Weight: 24g

Programmable Servo to be compatible with SSL & Telemetry at Launch
Setting Adjustment by wireless from Radio
Setting Adjustment to connect Servo with Setting Gear
Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
Initial Setting on Setting Gear is necessary.

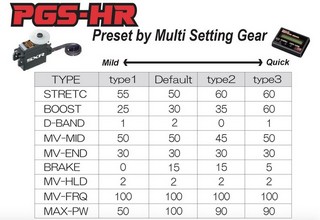

Setting Items
SSL-CH (SSL Channel Setting) -STRETC (Stretcher Adjustment) -BOOST (BOOST Adjustment)
D-Band (Dead Band Adjustment) -MV-MID (Middle Torque Adjustment)
MV-END (Later Torque Adjustment) -BREAK (Break Adjustment)
MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
MAX-PW (MAX Duty Adjustment)
Setting Gear is necessary for ◎setting.
PGS-Servo Explanation
