Descrizione

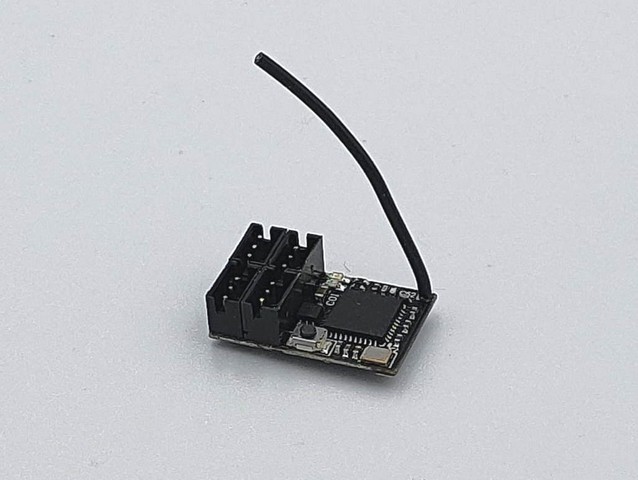

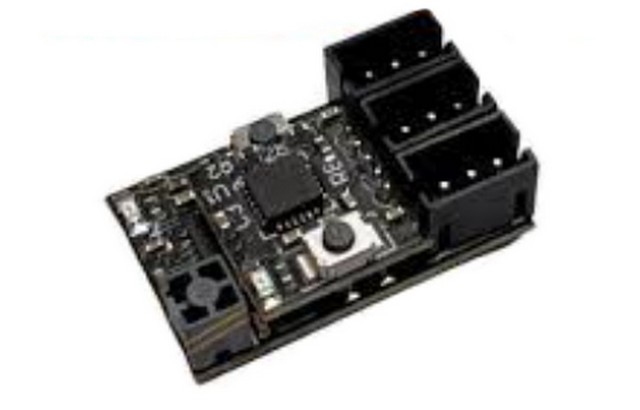

The 2.4GHz 4-Channel FHSS5 SSL Telemetry Receiver uses a tower antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for Mini-z scale electric RC cars.
Features:
1. Sanwa 2.4GHz FHSS5U/FHSS5 Spread Spectrum System compatible
2. Compatible with SSL (SUPER VORTEX Series, etc...)
3. Ultra Response Mode (SUR)
4. Extreme Response Mode (SXR)
5. Dual ID system (able to bind with 2 transmitters)
6. Micro size (19mm x 12 mm)
7. Operating Voltage 3.5V - 8.4V
8. Weight: 2g
Indicator Function compatible:
Indicator function can be checked signal strength connected transmitter. The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter. Indicator function can be checked signal strength without any effect with response.
NOTE:
RPM sensor (SNW107A41061A) and temperature sensor are not compatible
RPM and temperature telemetry are only capable with the Sanwa Super Vortex series
FH5U RF mode is not capable to use telemetry
SXR response mode is only compatible with transmitter M17.
Compatible Transmitters:
Sanwa M17
Sanwa MT-5
Sanwa MT-R
Bind
- Premere il pulsante BIND e accendere il ricevitore, il led del ricevitore lampeggerà velocemente.
- Accendere la radio in modalità BIND.
- Il led della ricevente lampeggerà lentamente quando il BIND è andato a buon fine.
- Scollegare l'alimentazione alla ricevente
- Spegnere la radio
- Accendere la radio
- Collegare il cavo di alimentazione alla ricevente
- A questo punto se la procedura è andata a buon fine dovrebbe funzionare tutto
